Staticide® 306 Dual Point Resistance Meter & 307 Checker

Ideal for ESD Packaging

The Staticide® 306 Dual Point Resistance Meter offers an economical, all-in-one solution for resistance readings in small areas. Portable and lightweight, this meter is perfect for assurance checks, testing nooks and recesses, or anywhere too small for five-pound electrodes.

The metal spring-loaded pogo pins may be used with or without conductive rubber boots. The logarithmic LED scale is quick and easy to read and evaluate.

Conduct regular calibration checks using the Staticide® 307 Checker Board, equipped with logarithmically scaled 1% resistors for each decade on the meter. The testing pads are designed with the correct spacing to accommodate the meter's pogo pins. Every board is serial numbered and calibrated.

Ideal for the following applications:

  • ESD packaging and trays
  • IC tubes and DIP packaging
  • Maintenance checks
  • Quality control and inspection
  • Assembly lines

FEATURES:

  • Conveniently measure point-to-point resistance in a pen-sized device
  • Conforms to ANSI/ESD STM11.13
  • Measures areas 0.375 inches (9.525mm) wide
  • Measurements over 10e10 ohms illuminates insulative light
  • Measuring range 10e3 - 10e10 ohms
  • Spring loaded electrodes with conductive rubber boots
  • Color LED display segments
  • Use for resistance testing in small specimens, parts, and hard to reach place
  • Dimensions: Meter - 2.8” x 5.1” x 1.4”, Checker - 5” x 3.25” x 0.19”
  • Made in the USA
ACL 306 PACK2

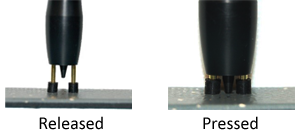

Remove button guard and protective cap from probe. Place dual pogo pins on substrate. Push down on meter while pressing test button. Hold for the final LED to light up.

Product Variants / Unit Sizes:

  • Product #306: Dual Point Resistance Meter, extra set of pins, one set of rubber boots, and calibration certificate
  • Product #307: Checker Board and calibration certificate
