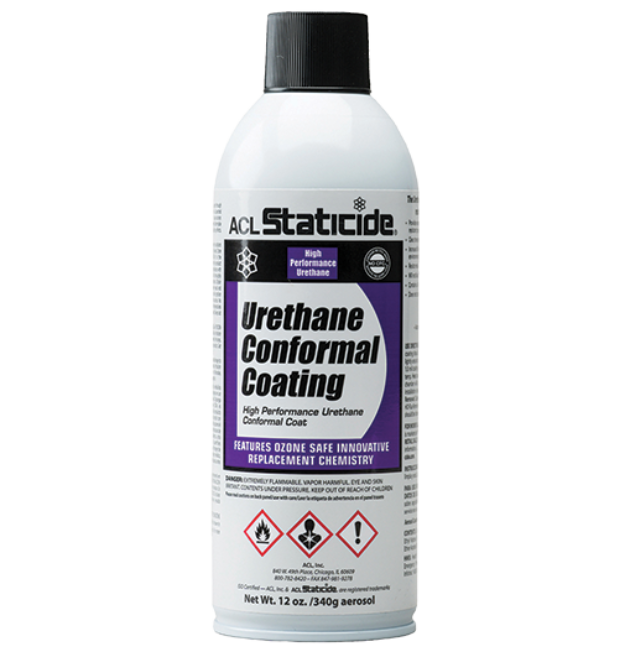

Staticide® 8696 Urethane Conformal Coating
Hard Shell Protection Against Acids and Alkalis
Staticide® 8696 Urethane Conformal Coating provides a super tough coating with excellent chemical resistance. It protects against acidic and alkaline substances making it an ideal choice for many general applications such as HVAC, fire alarms, relays, generators, motors, transformers, and battery operated devices.
Made with an industry-standard optic scan UV indicator, this product offers PCB and flex circuit protection from severe environmental stress, thermal shock, and mold and fungus. ACL’s hardest transparent conformal coating, it will not crack, yellow, or discolor over time under normal use. It spreads and dries quickly and is RoHS and REACH compliant.
Ideal for the following applications:
- Electronics manufacturing and assembly
- Aerospace and automotive
- Agriculture and mining
FEATURES:
- Operating temperature from -75°F/-59°C to 270°F/132°C
- Dielectric strength: 1100 volts/mil thickness
- Contains UV indicator for quality control
- Flammable
- Chemical and abrasion resistant
- Non-ozone depleting
- RoHS compliant, UL 746E certified
- Made in USA
Directions:
Shake well. Apply to clean and dry unmasked areas. Spray top to bottom allowing coating to flow lightly around components. Rotate board 90 degrees and repeat. Open water vessel in drying chamber to accelerate drying.
- Cure time: 1.0 mil cures tack free in 30 minutes
- Heat cure: 8 hours at 170°F/76°C
- Full cure: 24 hours
UV detectable for QC inspection. Following final installation and assembly of new component, area should be lightly re-coated.
For industrial use only. Read SDS carefully prior to use.
Material Compatibility:
| ABS | Good |
| Buna-N | Good |
| EPDM | Good |
| Graphite | Good |
| HDPE | Good |
| Kynar™ | Fair |
| LDPE | Good |
| Lexan™ | Fair |
| Neoprene | Good |
| Noryl | Good |
| Nylon™ 66 | Good |
| Cross-linked PE | Good |
| Polypropylene | Good |
| Polystyrene | Fair |
| PVC | Good |
| Silicone Rubber | Fair |
| Teflon™ | Good |
| Viton™ | Good |
Product Variants / Unit Sizes:
- Product #8696: 12oz (340g) aerosol can; 12 per case
