Staticide® 8699 Heat Sink Grease

Maximum Heat Transfer and Dissipation

Staticide® 8699 Heat Sink Grease enables heat transfer away from electronic and electrical components. This silicone-based material is thickened with a heat conductive metal oxide to maintain a positive heat sink seal. With its excellent conductivity, Staticide® 8699 Heat Sink Grease an effective thermal coupler for any heat sink surface.

Unlike some heat sink formulas, Staticide® 8699 Heat Sink Grease will not separate. The high dialectic strength and low bleed properties make it ideal for various applications including engineering and design work. Packaged in a convenient five-ounce tube, it is a one-component, ready-to-use product that does not dry out, harden, or melt.

Ideal for the following applications:

  • Industrial MRO
  • Process Control
  • Automotive, Marine, and Aerospace
  • Engineering and design equipment

FEATURES:

  • Dialectric strength: 500 volts/mil thickness
  • Temperature range: -60°F (-51°C) to 400°F (200°C)
  • Arc resistance (seconds): 120
  • Thermal conductivity: 4.35 (BTU/hr)
  • Non-corrosive; non-flammable
  • Conforms to MIL-DTL-47113E, type 1B
  • RoHS, REACH compliant
  • Made in USA
Heat Sink Grease

Directions:

Cut nozzle to desired length at 45-degree angle. Apply by pushing soft tube. Collapsible tube may be squeezed by hand or with the aid of mechanical wringers. Apply to all mounting and threading surfaces of the device and chassis.

For industrial use only. Read SDS carefully prior to use.

Material Compatibility:

Heat Sink Grease is compatible with most materials used in electronic assemblies. It's safe to use on most plastic and PCB surfaces. With any chemical solvent or component, compatibility must be tested prior to use.



ABSGood
Buna-NGood
EPDMGood
GraphiteGood
HDPEGood
Kynar™Good
LDPEGood
Lexan™Fair
NeopreneFair
NorylFair
Nylon™ 66Good
Cross-linked PEGood
PolypropyleneGood
PolystyreneGood
PVCGood
Silicone RubberGood
Teflon™Good
Viton™Good

Product Variants / Unit Sizes:

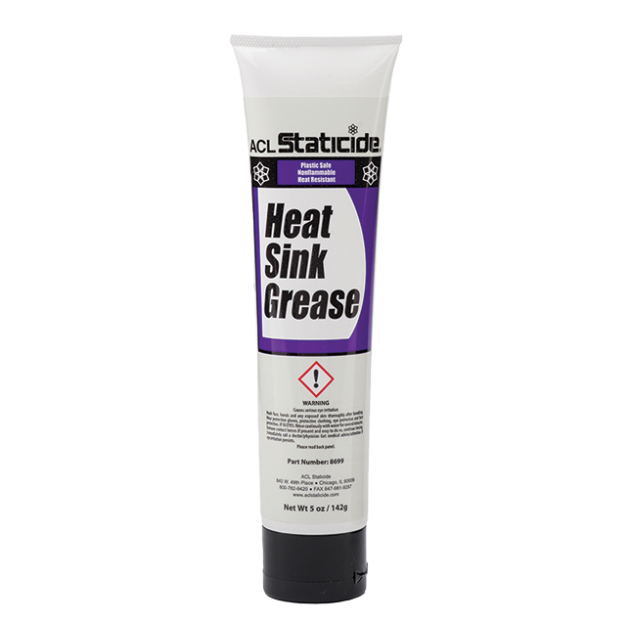

  • Product #8699: 5oz (142g) squeeze tube; 6 per case
