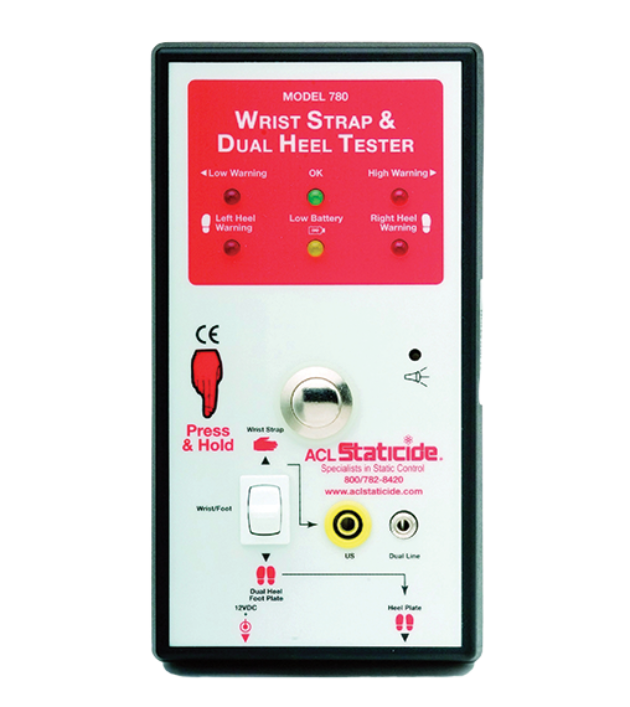

Staticide® 780 Wrist Strap & Dual Heel Tester
Versatile Personnel Grounding Tester
Save time by testing personnel wrist and footwear grounding with the easy to use Staticide® 780 Wrist Strap & Dual Heel Tester. This pass/fail tester measures the electrical resistance of wrist straps and ESD footwear simultaneously or individually. Colored LEDs show universally understood test results in under three seconds.
Featuring the same high end components as the Staticide® 750USB Wrist Strap & Dual Heel Tester, the 780 is perfect for work areas that need personnel grounding testing but that don't require data logging. Adjustable high and low limits add versatility for ESD plans.
The Economy Combo Tester is available with or without a stand. Optional accessories available include an 1000MΩ high limit and relay for security door access.
Product Features:
- Simultaneous testing for wrist and footwear
- Accuracy: +/- 10% (tester only)
- Conforms to ANSI / ESDA 20.20 standard
- Environment: 32ºF to 100ºF (0ºC to 38ºC); 15% to 95% RH
- Test voltage: 19volts DC ± (open circuit)
- Adjustable resistivity limits for wrist straps and footwear:
- High Limits: 2M, 5M, 10M, 25M, 35M, 50M, 75M, 100M ohms
- Low Limits: 500k, 750k ohms
- Optional accessories available
